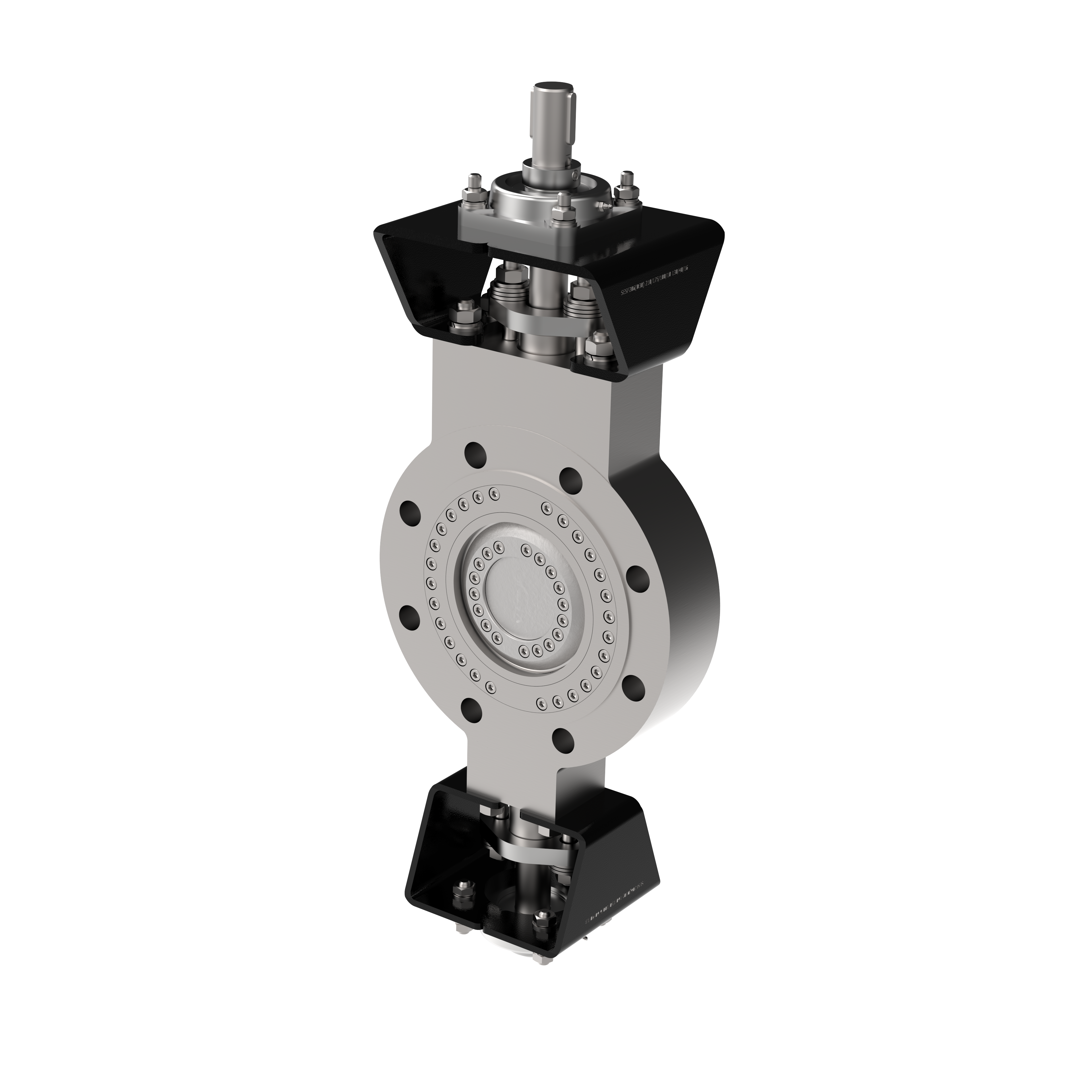

Triple eccentric butterfly valveVA5003.S; VA5003.A

Triple eccentric butterfly valve with metal seats for the most demanding applications

Nominal diameters

• DN 80 (3“) – DN 1200 (48“)

Nominal pressure values

• Class 150 – Class 600

Design

• triple eccentric butterfly valve

Operating temperature range

• -196°C to +700°C

Flow characteristics

• on/off

Leakage class (IEC 60534-4)

• class VI

Body and disc material

• carbon steel
• stainless steel
• super Duplex
• bronz

Connection

• WAFER
• LUG
• flanged

Type of actuator

• gearbox with handwheel
• pneumatic piston
• hydraulic
• electric
