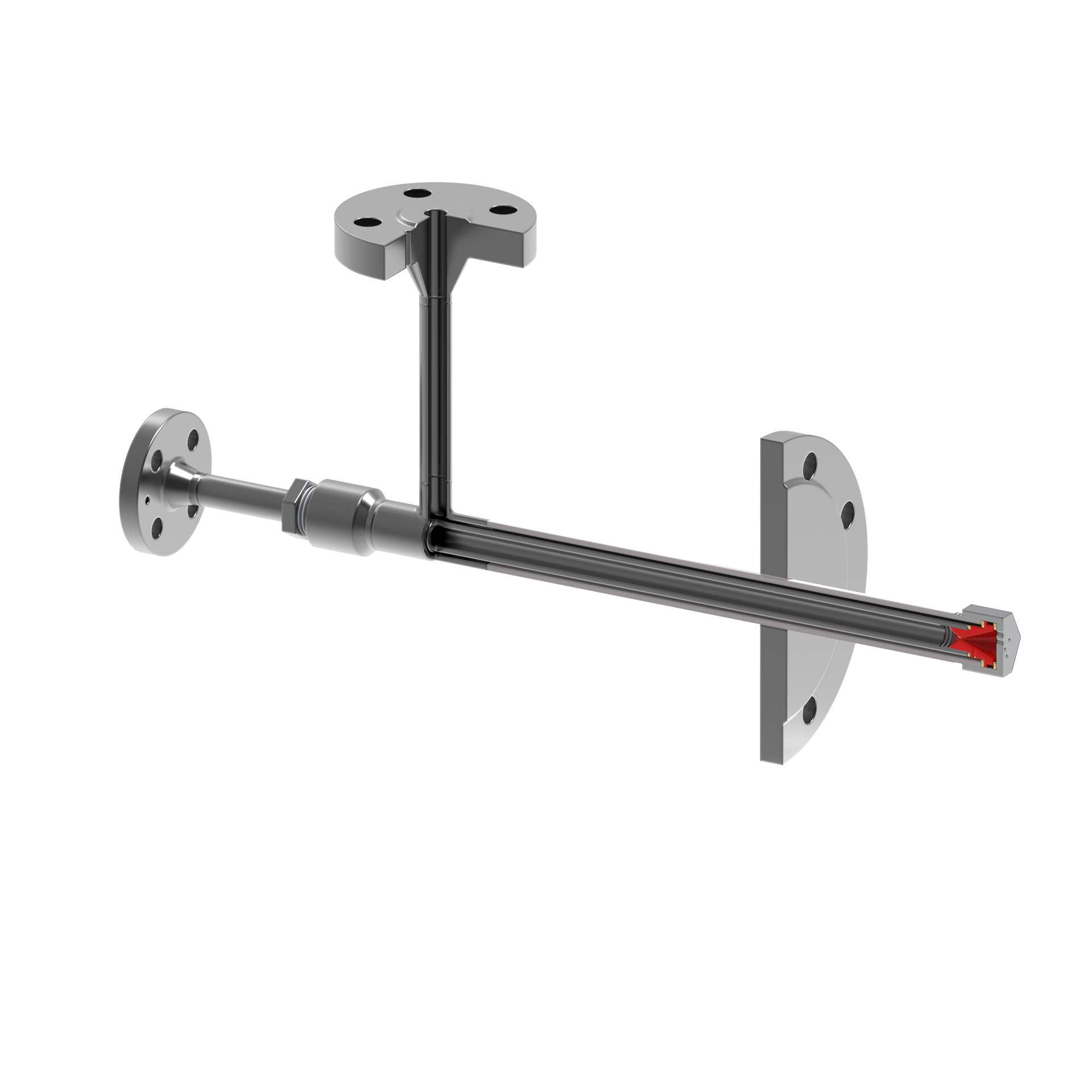

Steam cooler with atomizing steamVA7040

Steam cooler design using steam assistance to atomize the injected water

Nominal diameters

• water DN 15 (½“) – DN 50 (2“)
• atomizing steam DN 15 (½“) – DN25 (1“)
• steam pipeline DN 80 (3“) – DN 500 (20“)

Nominal pressure values

• PN 16 – PN 400
• Class 150 – Class 2500

Design

• spraying with atomizing steam

Operating temperature range

• 100°C – 560°C

Material

• carbon steel P265 GH(1.0425), A105
• alloy steel 16Mo3 (1.5415)
• alloy steel 17CrMo 9-10 (1.7377)
• stainless steel X6CrNiTi 18-10 (1.4541)
