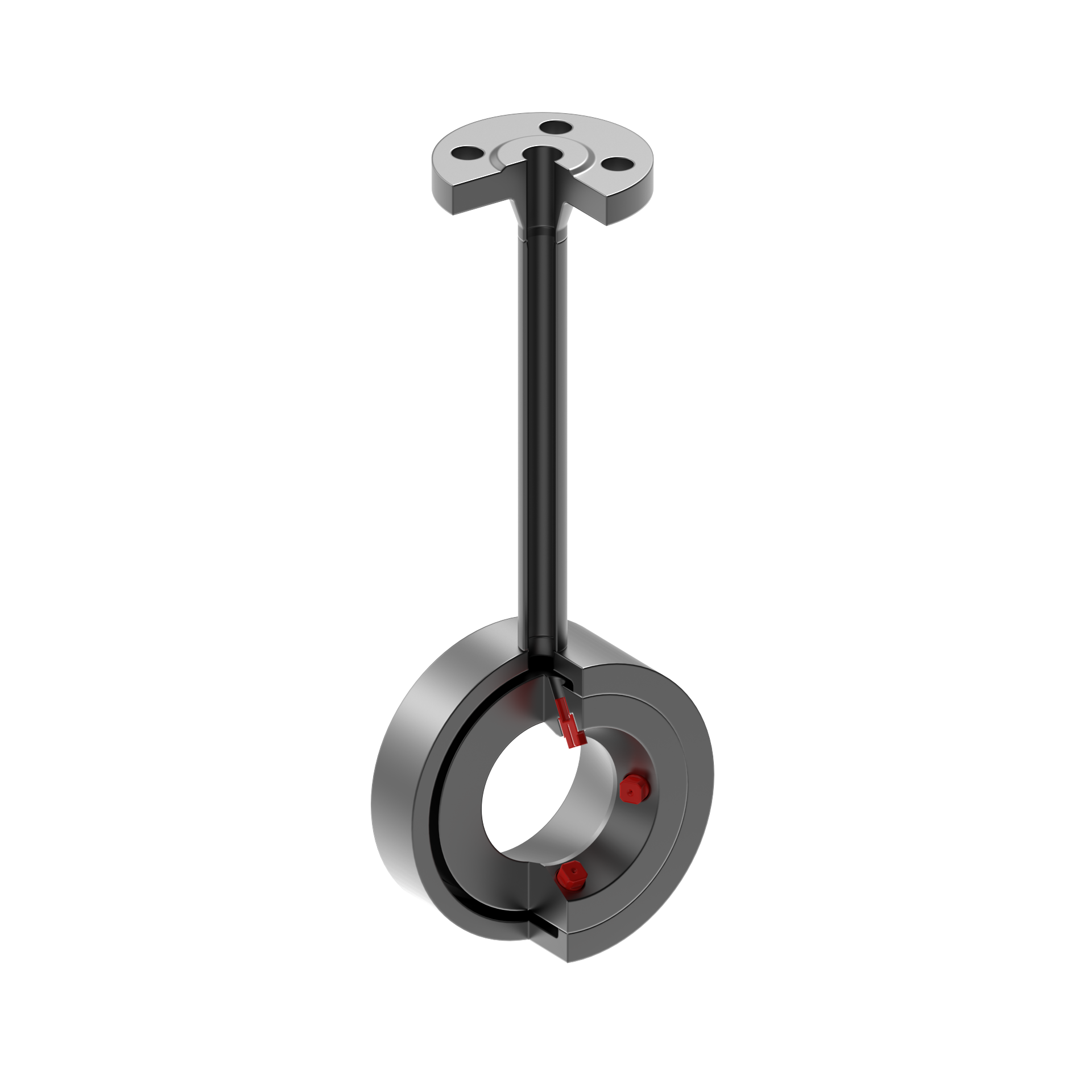

Inter-flange steam coolerVA7020.F

Multiple radial desuperheater with inter-flange installation

Nominal diameters

  • steam DN 50 (2“) – DN 200 (8“)
  • water DN 15 (½“) – DN 25 (1“)

Nominal pressure values

  • PN 40
  • Class 300

Design

  • multiple steam cooler with 4 nozzles with radial spraying

Operating temperature range

  • 100°C – 500°C

Material

  • carbon steel P265 GH(1.0425), A105
  • alloy steel 16Mo3 (1.5415)
  • alloy steel 17CrMo 9-10 (1.7377)
  • stainless steel X6CrNiTi 18-10 (1.4541)
Prstencový chladič
